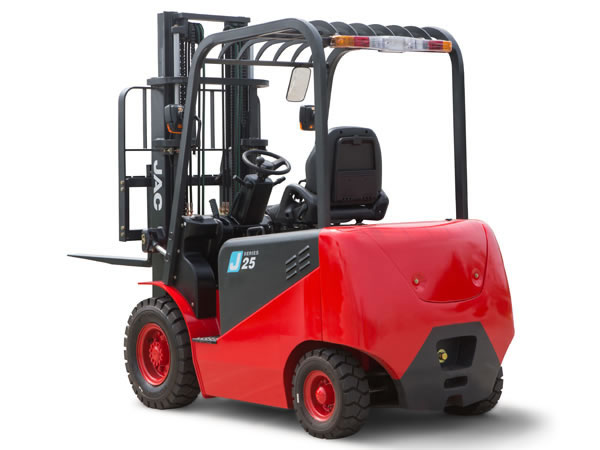

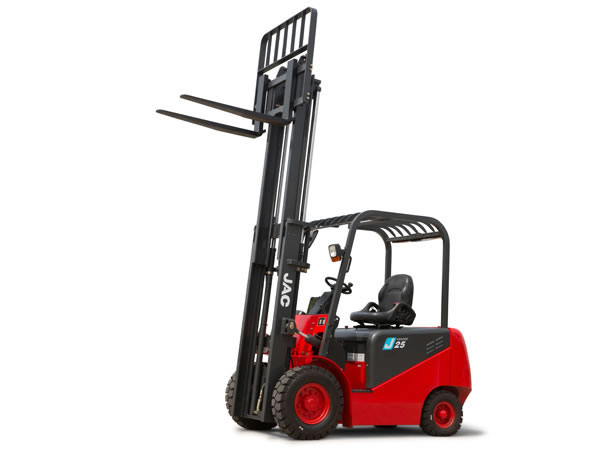

Electric Forklift

CPD25J

  • Features
  • Parameter




Model Unit CPD25J
 Powe type Battery
Rated load kg 2000
 Load center distance mm 500
 Lift height mm 3000
Fork size
mm 1070×122×40
 Minimum turning radius mm 2200
Maximum travel speed/Full load
km/h 12
Maximum travel speed/No load 13
Fork height at maximum lift (with backrest) mm 4030
Standard Mast height mm 1995
Front wheel 7.00-12-12PR
 Rear wheel 18×7-8-14PR
Tread   Front wheel/rear wheel mm 973/960
 Self weight  Without load kg 3850
Battery  Voltage/capacity V/Ah 48/600
Motor/Traveling KW 11.1
