JAC Heavy-Duty - Products - Diesel Forklift

Diesel Forklift

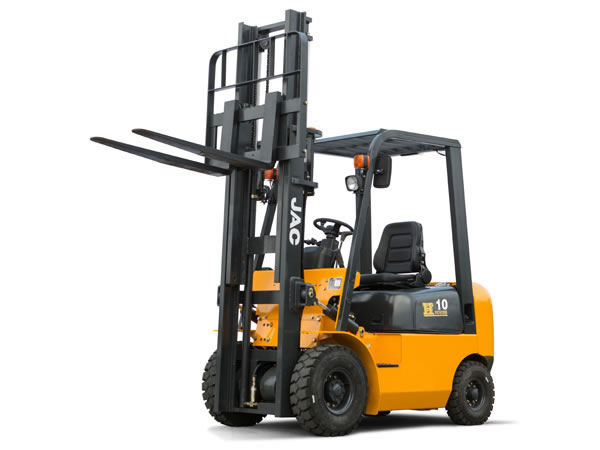

1T Internal Combustion Counterbalance Forklift Truck
				CPCD10
Features	Powe type			Diesel
	Rated load		kg	1000
	Load center distance		mm	500
	Lift height		mm	3000
	Free lift height		mm	120
	Fork size	L×W×T	mm	920×100×35
	Mast tilt angle	FR/RR	。	6/12
	Minimum turning radius		mm	1880
	Minimum ground clearance	Frame center(no load)	mm	115
	Minimum ground clearance	Mast Bottom（no load）	mm	110
	Height of overhead guard		mm	2060
Performance	Maximum travel speed	Full load	km/h	14.6
	Maximum travel speed	No load	km/h	14.8
	Maximum lift speed	Full load	mm/s	510
	Maximum lift speed	No load	mm/s	555
	Maximum drawbar pull	Full load	KN	12
	Maximum gradeability		%	20
Dimensions	Overall length	Without forks	mm	2160
	Overall width		mm	1080
	Mast height at maximum lift (with backrest)		mm	3930
	Mast lowered height		mm	2010
