Diesel Forklift

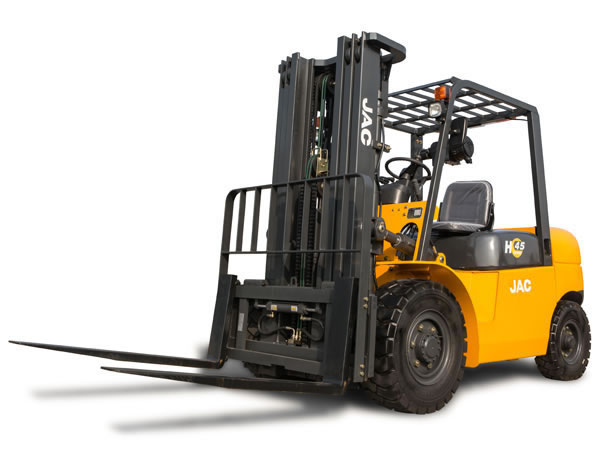

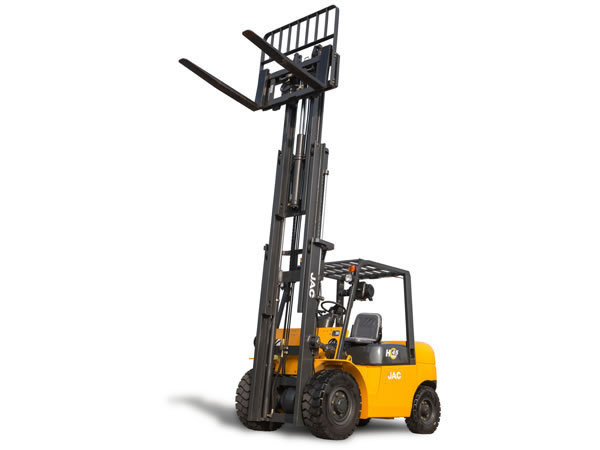

4.5T Internal Combustion Counterbalance Forklift Truck
Model				CPCD45
Features	Powe type			柴油Diesel
	Rated load		kg	4500
	Load center distance		mm	500
	Lift height		mm	3000
	Free lift height		mm	150
	Fork size	L×W×T	mm	1070×150×50
	Mast tilt angle	FR/RR	。	6/12
	Minimum turning radius		mm	2750
	Minimum right angle stacking aisle width		mm	4695
	Minimum right angle aisle width		mm	2612
	Minimum ground clearance	Frame center(no load)	mm	200
	Minimum ground clearance	Mast Bottom（no load）	mm	150
	Height of overhead guard		mm	2265
Performance	Maximum travel speed	Full load	km/h	19
	Maximum travel speed	No load	km/h	21
	Maximum lift speed	Full load	mm/s	500
	Maximum lift speed	No load	mm/s	530
	Maximum drawbar pull	Full load	KN	40
	Maximum gradeability		%	20
Dimensions	Overall length	Without forks	mm	3102
	Overall width		mm	1480
	Mast height at maximum lift (with backrest)		mm	4230
	Mast lowered height		mm	2265
Chassis	Tires	Front wheel		2-300-15-20PR
	Tires	Rear wheel		2-7.00-12-12PR
	Wheelbase		mm	2000
	Self weight	Without load	Kg	6550
