Diesel Forklift

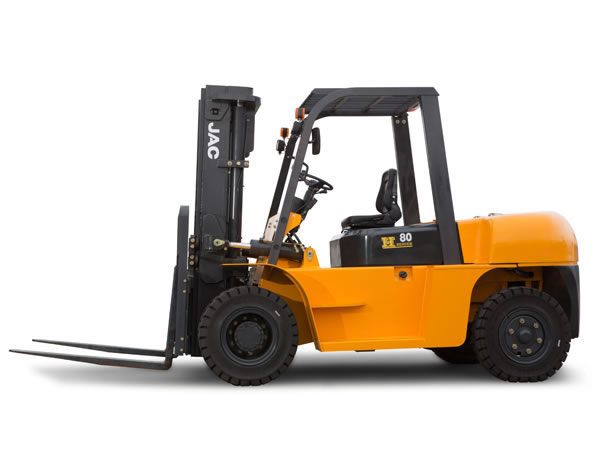

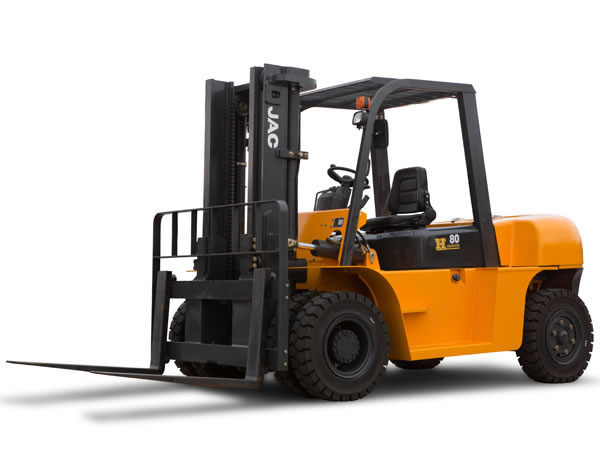

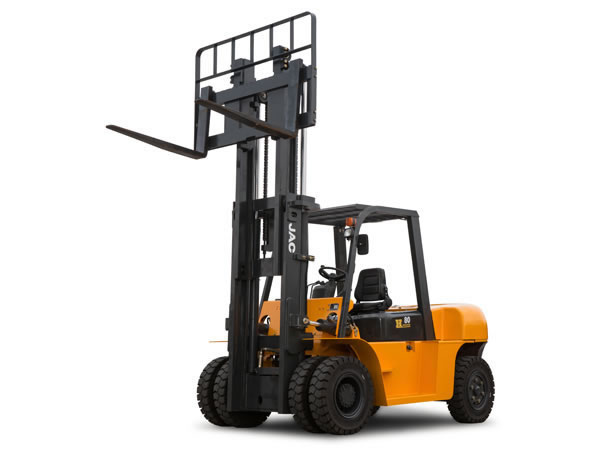

8T Internal Combustion Counterbalance Forklift Truck
				CPCD80H
Features	Powe type			柴油Diesel
	Rated load		kg	8000
	Load center distance		mm	600
	Lift height		mm	3000
	Free lift height		mm	185
	Fork size	L×W×T	mm	1220×150×80
	Mast tilt angle	FR/RR	。	6/12
	Minimum turning radius		mm	3370
	Minimum right angle stacking aisle width		mm	5310
	Minimum right angle aisle width		mm	3100
	Minimum ground clearance	Frame center(no load)	mm	220
	Minimum ground clearance	Mast Bottom（no load）	mm	205
	Height of overhead guard		mm	2500
Performance	Maximum travel speed	Full load	km/h	24
	Maximum travel speed	No load	km/h	25
	Maximum lift speed	Full load	mm/s	400
	Maximum lift speed	No load	mm/s	430
	Maximum drawbar pull	Full load	KN	53
	Maximum gradeability		%	20
Dimensions	Overall length	Without forks	mm	3610
	Overall width		mm	2075
	Mast lowered height		mm	2510
